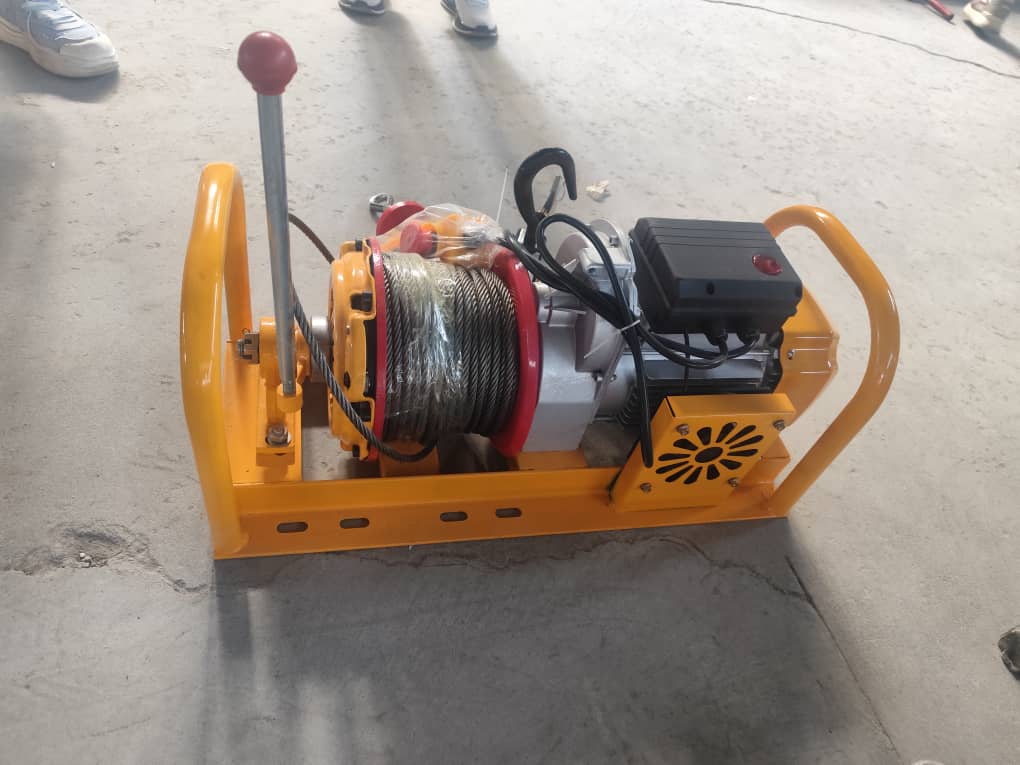

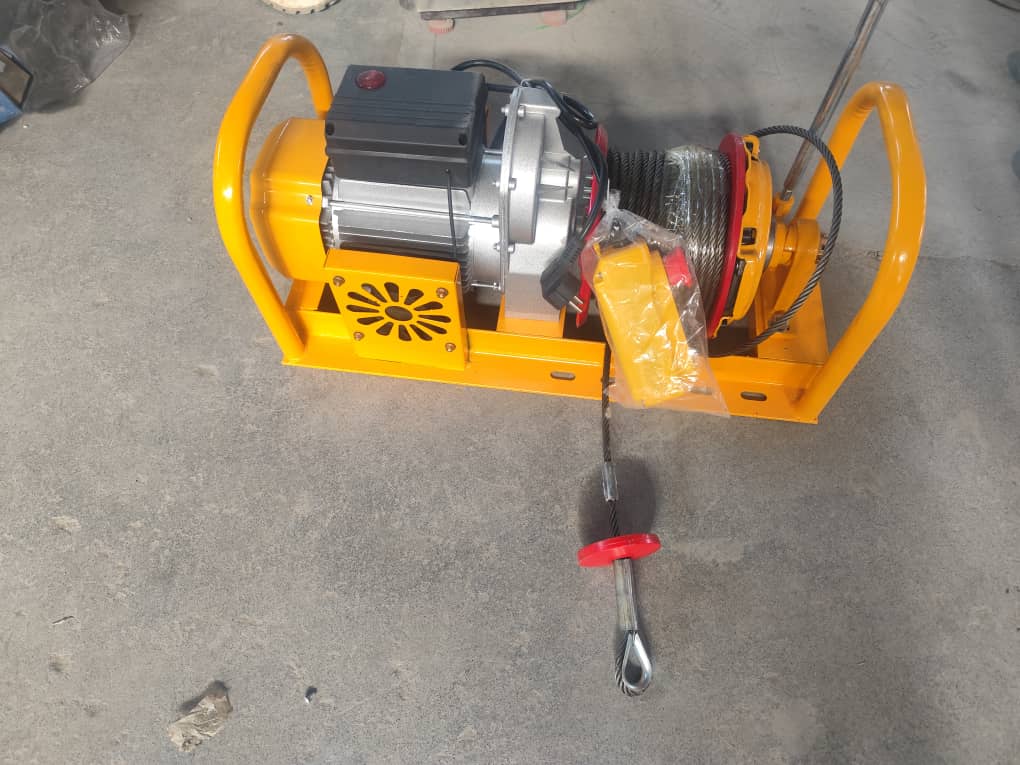

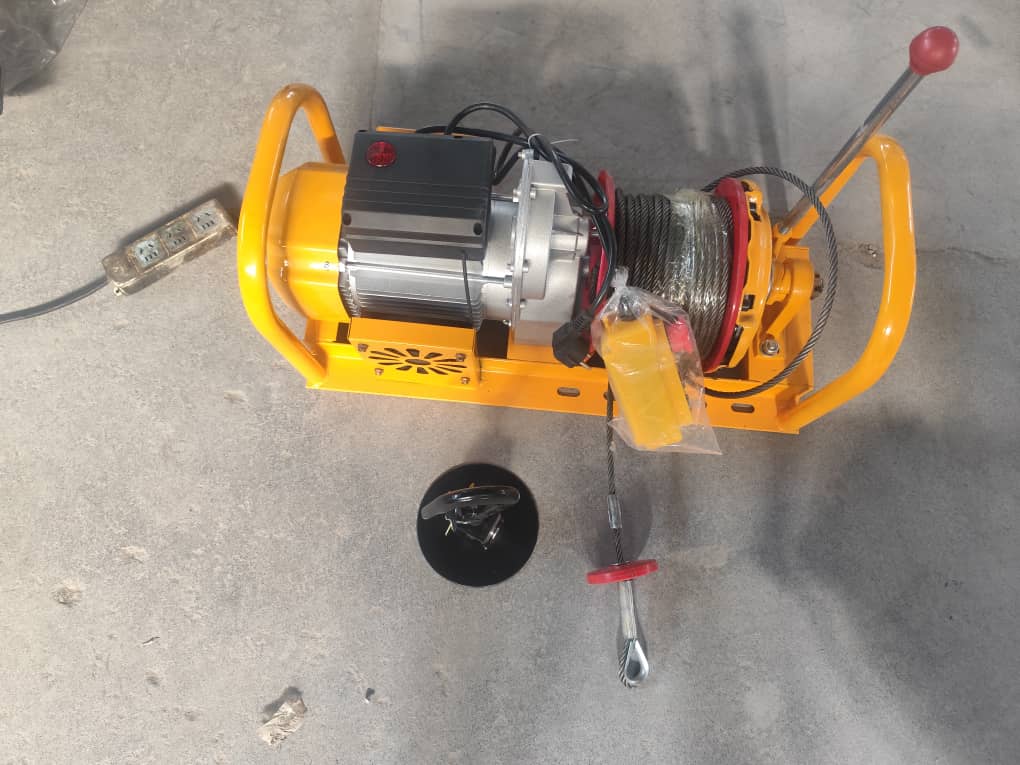

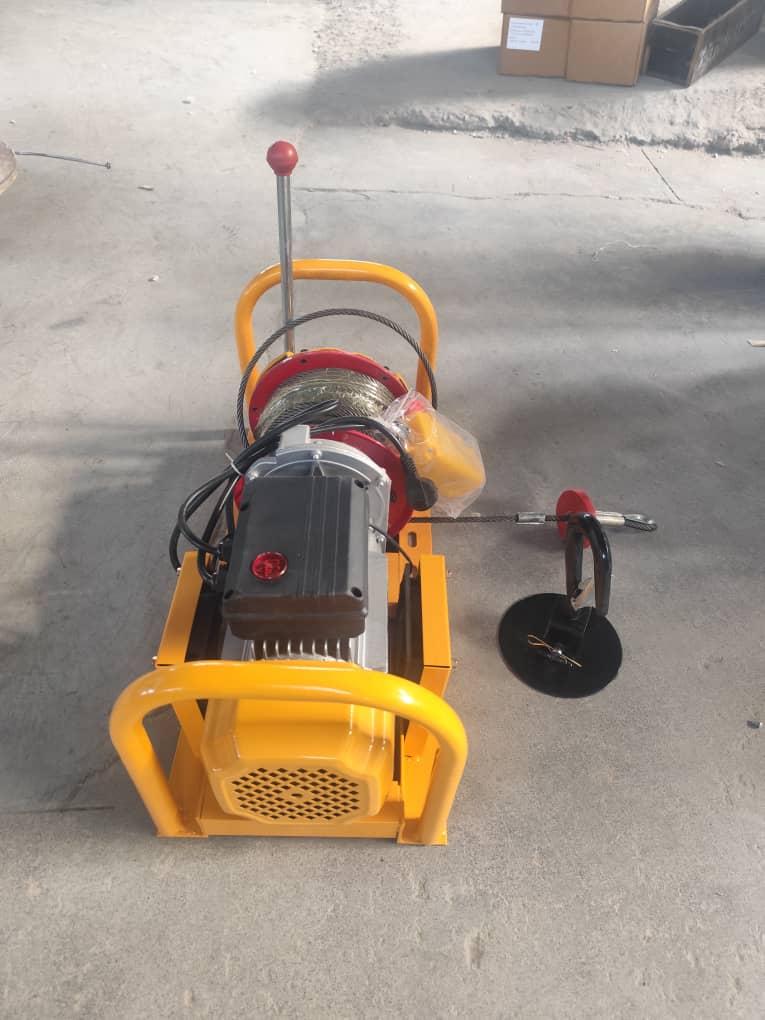

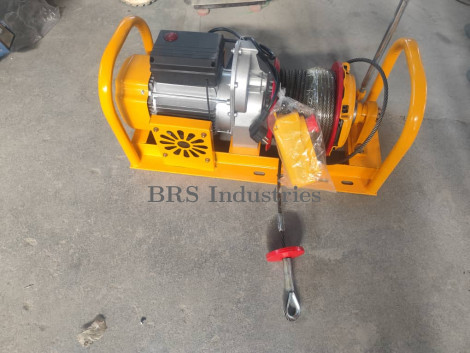

ELECTRIC WIINCH WITH CLATCH AND HANDAL 1 TON

HSN Code: 8425

Product Code: A1840CH Brand: Crown Power

Type : ELECTRIC

₹18,250.00 (MONKEY CRANE MACHINE )
MRP~~₹ 22,500.00~~ 18.89% OFF

Highlights

Feature	Standard Specifications
Lifting Capacity	1000 kg (1 Ton) 500KG (0.5T)under standard configuration
Wire Rope Length	40 Meters
Wire Rope Diameter	8 mm (High-tensile steel wire core)
Motor Power	3 HP
Power Source	Single Phase (220V, 50Hz) standard domestic power
Motor Winding	100% Pure Copper Winding (for thermal durability)
Lifting Speed	18 to 20 meters per minute

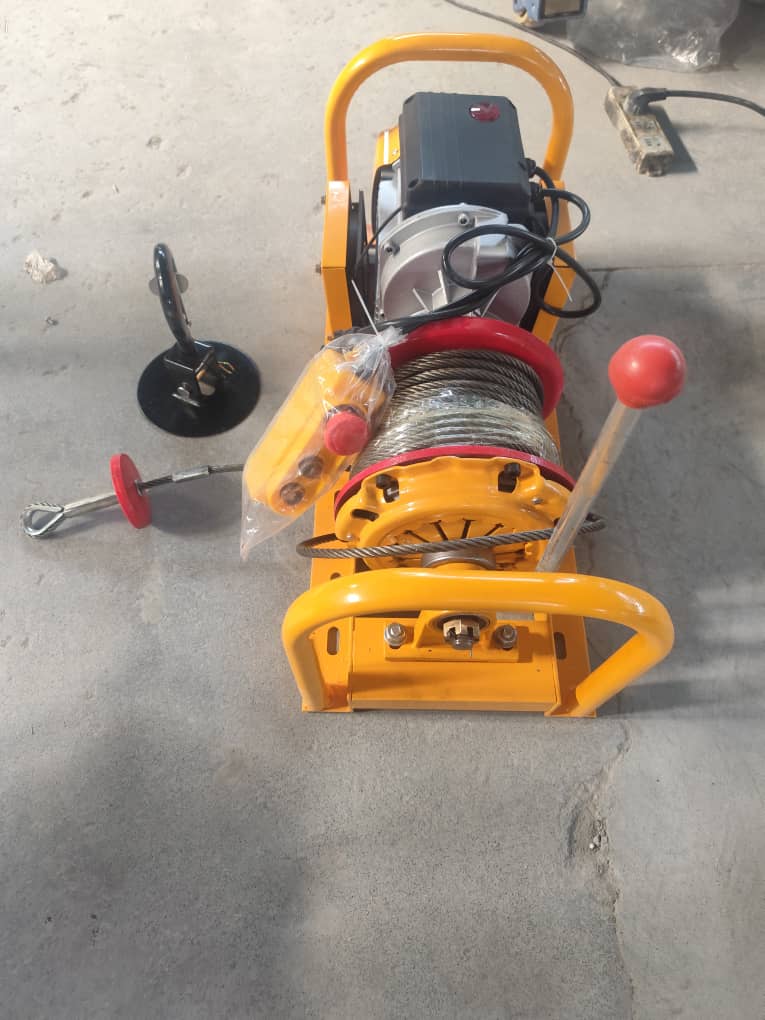

Clutch System	Manual mechanical clutch lever (Red handle)
Control Unit	Wired Push-Button Pendant (Up / Down / Emergency Stop)
Lubrication	Heavy-duty Gear Grease
Machine Weight	~45 kg to 55 kg

Description

Applications
Civil Construction: Lifting cement bags, bricks, iron rods, and other construction materials directly to higher floors or rooftops.
Workshops & Garages: Pulling vehicles, positioning heavy machinery, or moving structural steel frames.

Manual Clutch Lever (Red Handle): Pulling the handle disengages the internal gear system. This is incredibly useful for releasing the wire rope down quickly to the ground without consuming electricity or putting wear on the motor.

Heavy-Duty Base Mounting: The winch is built on a thick, structural steel base frame designed to be directly bolted to a concrete foundation, roof platform, or a robust gantry structure.

Agriculture & Well Work: Pulling submersibles or transporting produce and agricultural machinery components
