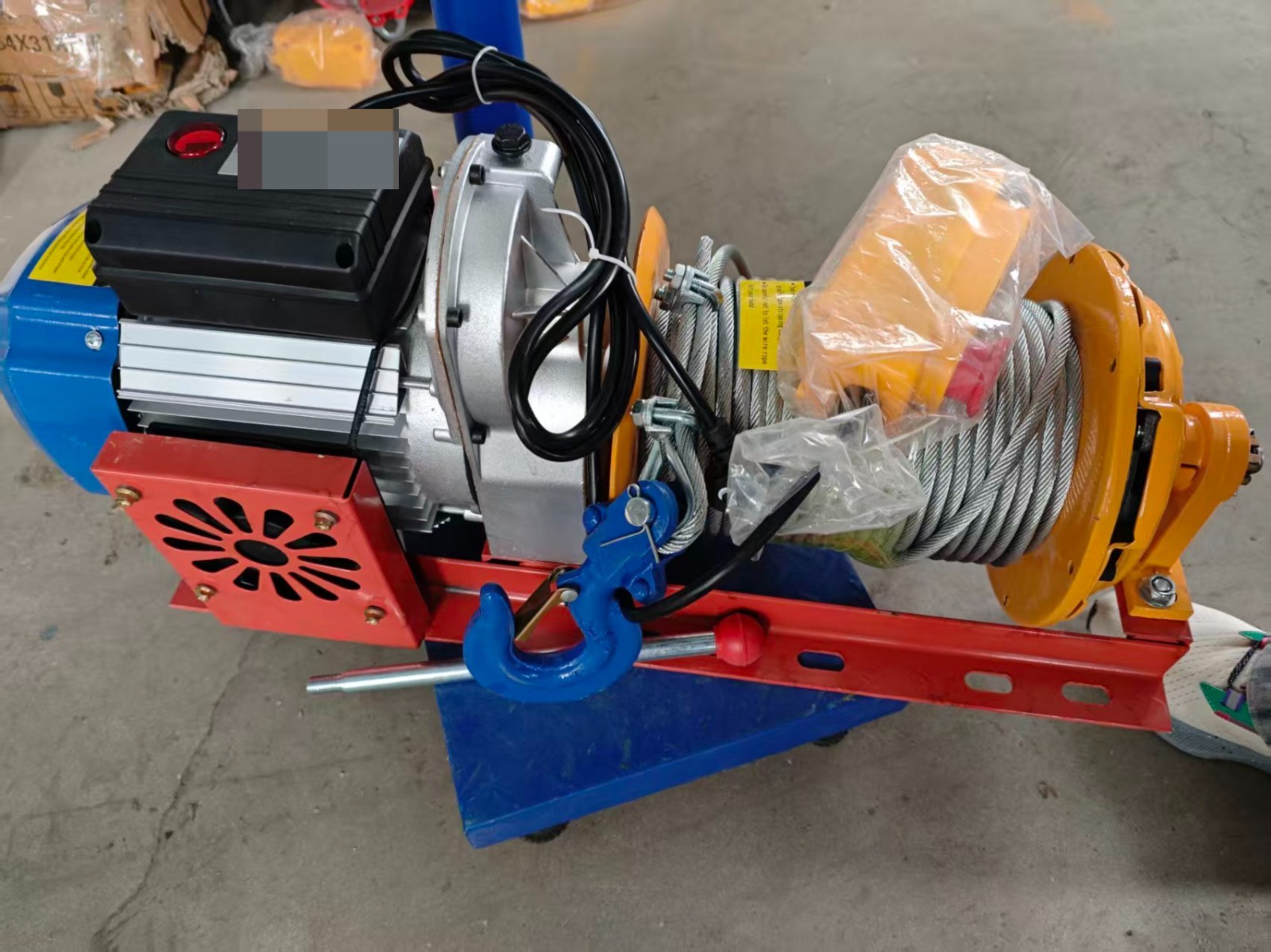

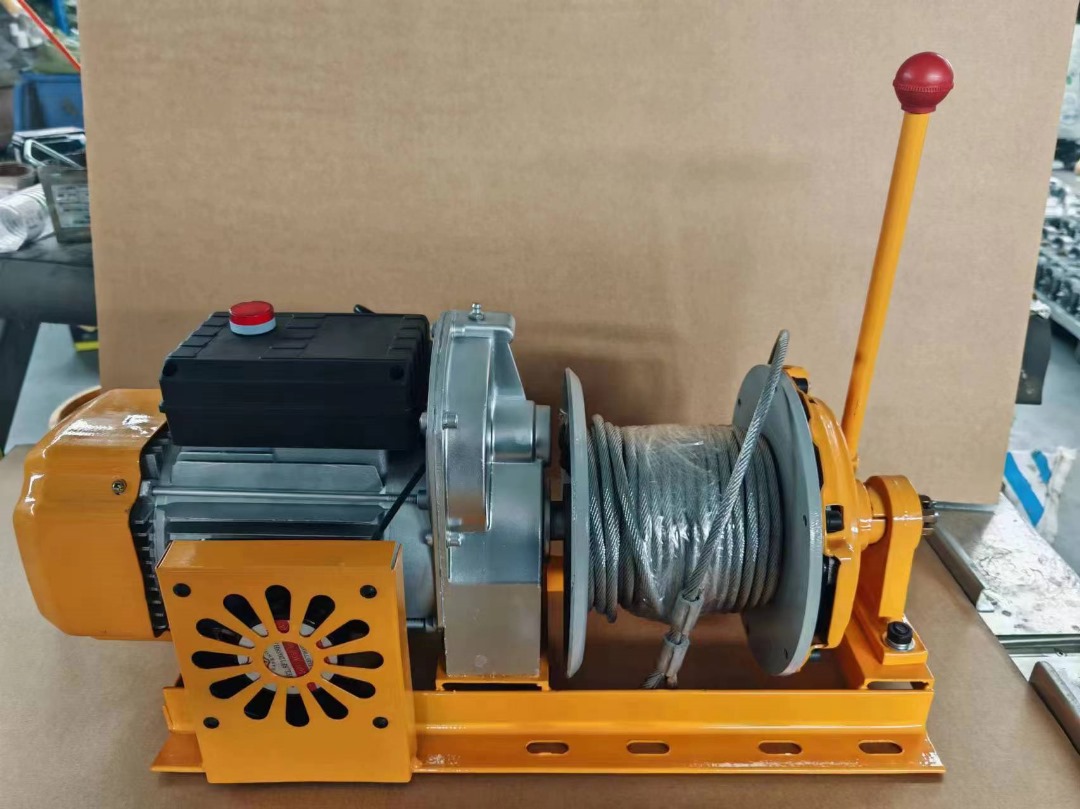

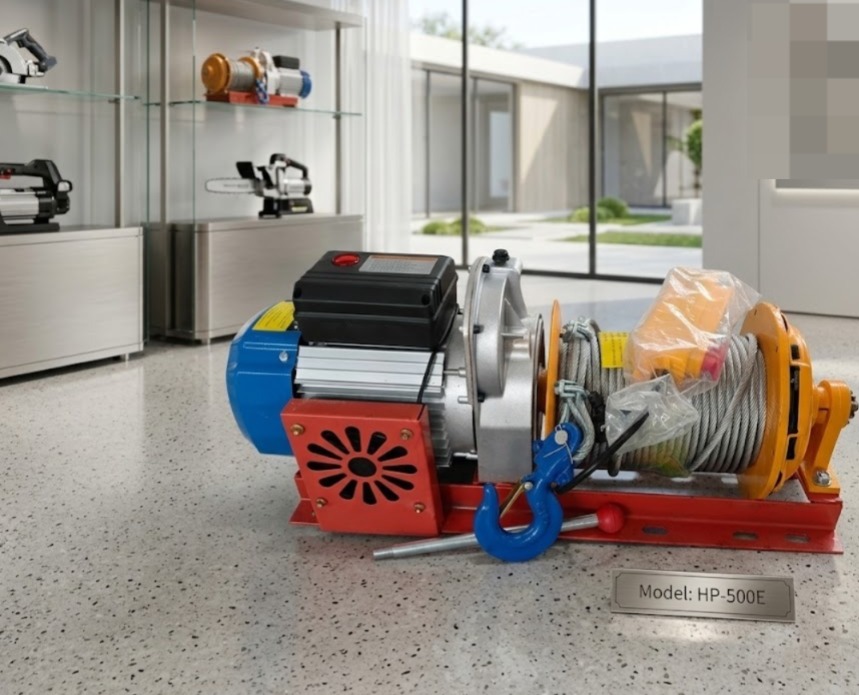

Electric Winch with Clutch – 1 Ton (Single Phase) 8MM

Heavy-duty electric winch equipped with a manual clutch system for easy free-spooling and smooth load control. Designed for lifting, pulling, and material handling applications in construction sites, warehouses, factories, and workshops.

Lifting Capacity (All Variants):

• Single Rope: 500 kg

• Double Rope: 1000 kg

• Performance: A higher-powered 3 HP motor for faster lifting speeds (up to 40 meters per minute)

• Features: Designed for industrial use with an integrated clutch system for precise control and a remote with an emergency stop.

Wire Rope Diameter (All Variants): 8 mm
Power Supply: Single Phase (220V)
Body: Strong metal construction for industrial use

Variant 1: 8mm x 40 Meter Wire Rope

• Rope Length: 40 meters

• Suitable for medium-height lifting applications

• Compact and efficient for workshop & warehouse use

• Smooth clutch operation for easy rope release

Variant 2: 8mm x 50 Meter Wire Rope

• Rope Length: 50 meters

• Ideal for standard construction lifting needs

• Strong 8mm heavy-duty steel rope

• Reliable and stable lifting performance

Variant 3: 8mm x 70 Meter Wire Rope

• Rope Length: 70 meters

• Designed for higher elevation lifting

• Industrial-grade motor with consistent torque

• Durable and long-lasting rope performance

Variant 4: 8mm x 100 Meter Wire Rope

• Rope Length: 100 meters

• Suitable for high-rise and deep lifting applications

• Heavy-duty design for extended usage

• Enhanced load stability with clutch control
